Description

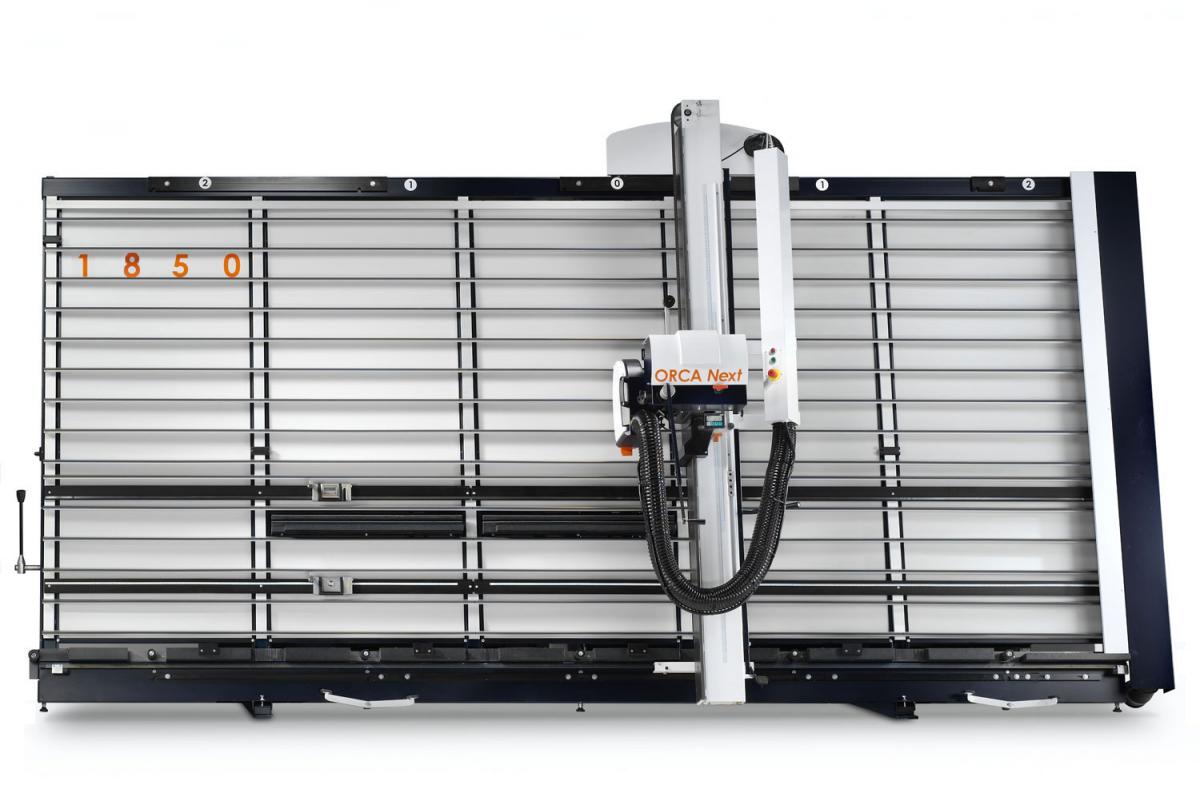

The Orca is a vertical panel saw with a vertical cut upto 1850mm or 2150mm and a horizontal cut upto 4300mm.
WANT MORE INFORMATIONCall Us On 028 9081 7704

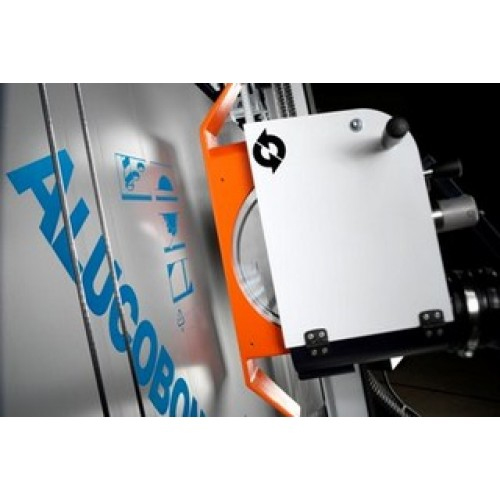

Extended lengths and/or heights are possible. The standard depth of cut is 55mm. Variable cutting depths of 80 or 100mm are also possible. The saw unit is easily rotated manually from vertical - to horizontal sawing and is equiped with a locking controller to prevent cutting into the panel supports.
Technical specifications:
| Orca | | 1550 | 1850 | 2150 |
| Max. vertical cut | mm | 1550 | 1850 | 2150 |
| Max. horizontal cut | mm | 3300 | 4300 | 4300 |
| Max. depth of cut | mm | 60 | 60 | 60 |
| Sawblade diameter | mm | 250 | 250 | 250 |

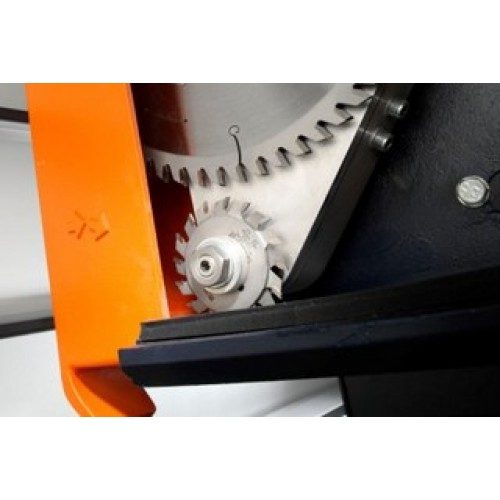

| Scoringblade diameter | mm | 70 | 70 | 70 |
| Motorpower | kW | 4,0 | 4,0 | 4,0 |
| Voltage | V | 400/3~/50Hz | 400/3~/50Hz | 400/3~/50Hz |
| Spindle speed | rpm | 5000 | 5000 | 5000 |
| Scoring blade speed | rpm | 13000 | 13000 | 13000 |
| Weight | kg | 525 | 600 | 640 |
Subject to change without notice. Special models upon request
Dimmensions:
Dimmensions:
| Orca | | 1550 | 1850 | 2150 |
| A | mm | 800 | 900 | 900 |
| B | mm | 1200 | 1400 | 1400 |
| C | mm | 2000 | 2300 | 2600 |
| D | mm | 2450 | 2700 | 3000 |
| E | mm | 4200 | 5300 | 5300 |
