Coima Dust Extraction System

Click on photograph for zoom and see all photos

Description



***SOLD***

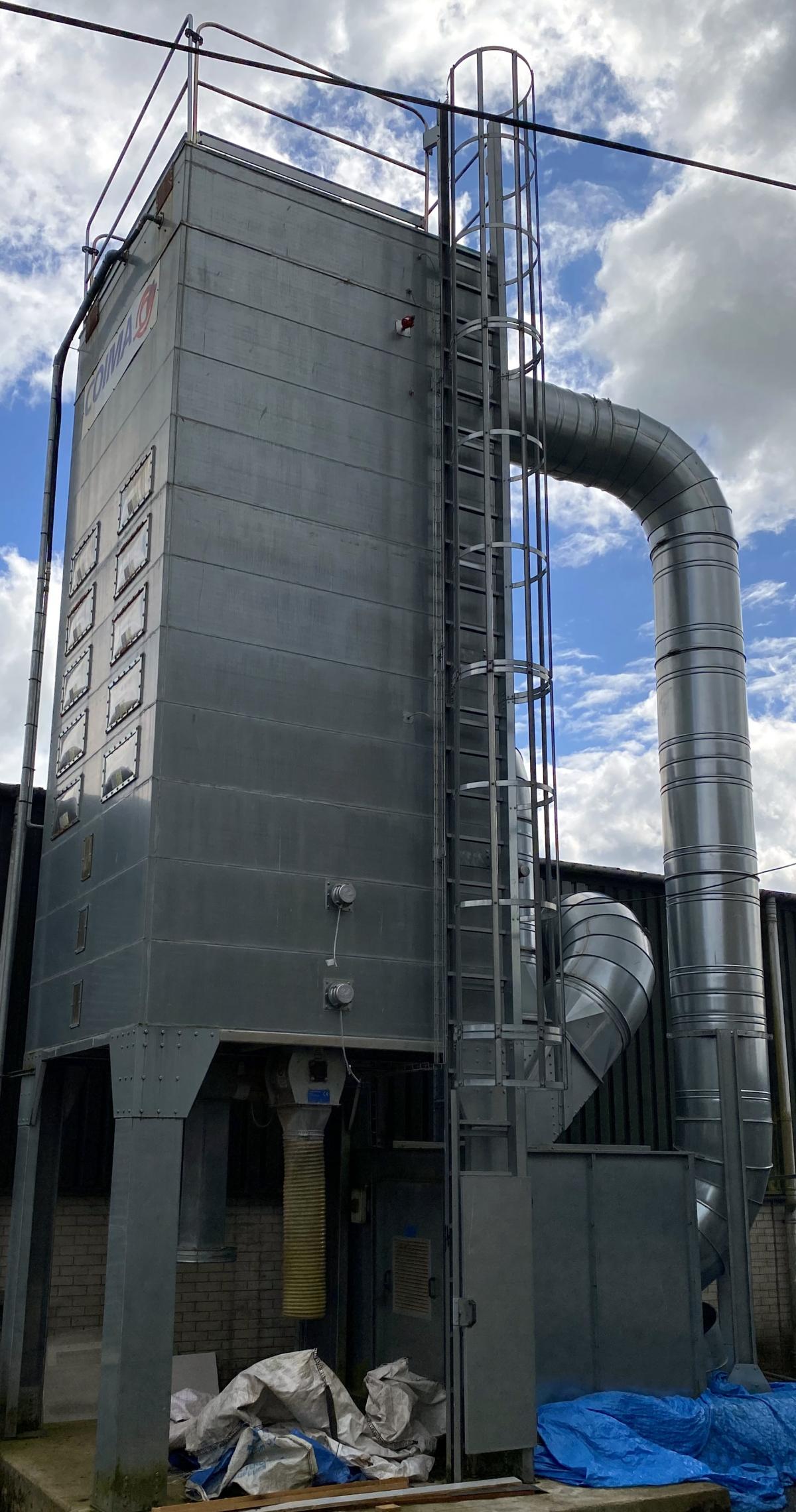

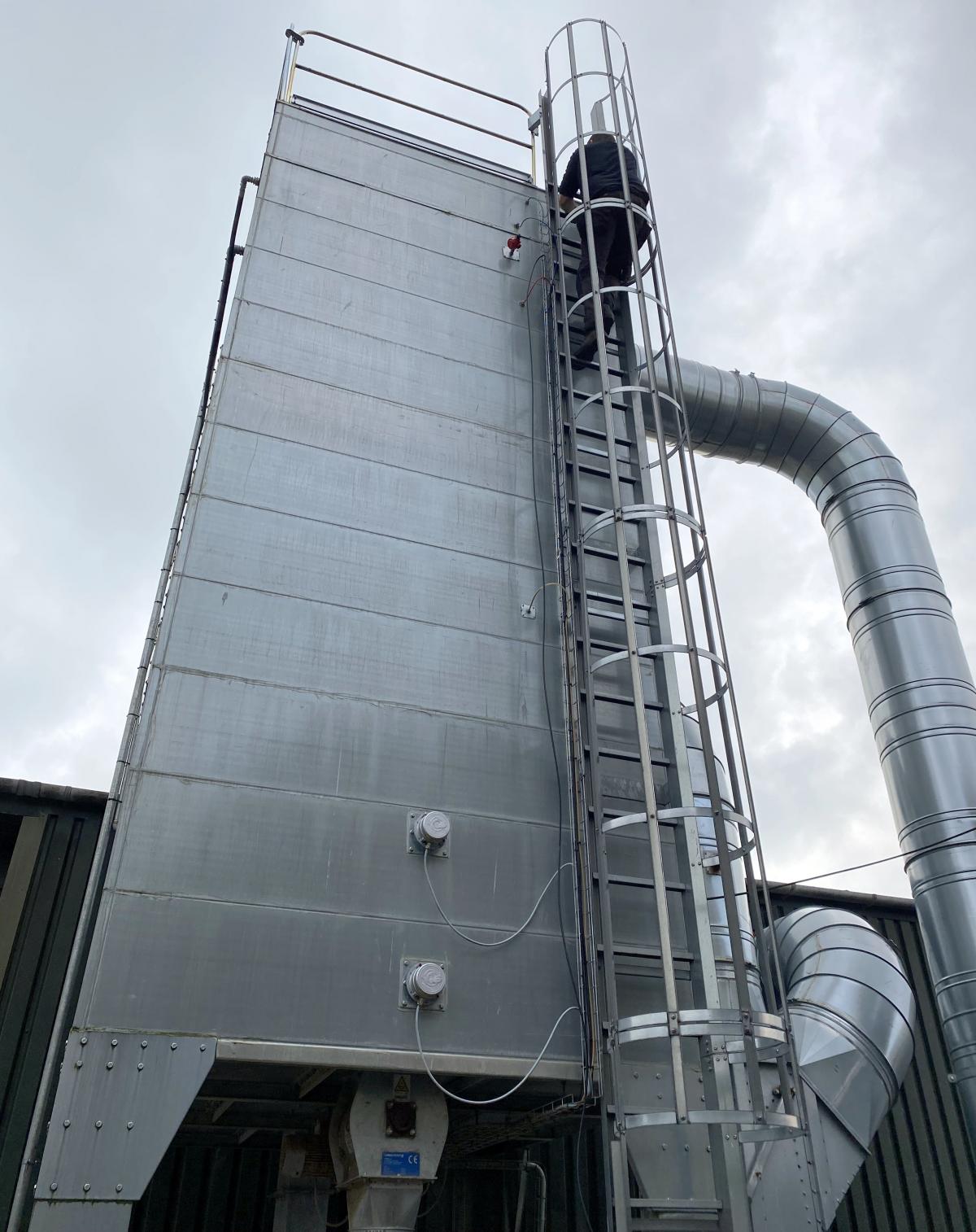

Coima Dust Extraction System, Negative Pressure, Bulk Loading, Atex Rated

MAKE: Coima
MODEL: CM PD 00060231 PREX - 1M-170465
SERIAL NO: 007-18 010-18
CONDITION: Pre-Used
YEAR OF MANUFACTURE: 2018
VOLTAGE: 400v 3 Phase 50Hz
DIMENSIONS APPROX: 6300mm L x 3500mm W x 9580mm H (space required)
WEIGHT: 3000 Kg

SPECIFICATION:
External weatherproof dust extraction system for multiple woodworking machines.
Negative pressure system with the fan on the “Clean Side” of the filters.
Variable speed drive system for energy efficiency.
Main fan housed in a sound-reducing enclosure.
Summer & Winter Heat Dump to return filtered air back into the workshop/factory to reduce heat loss and negative pressure.
Filtered heat recovery ducting with automatic fire dampers included.
Atex Rated.
Compressed Air Filter Cleaning.
Water Dousing system for prevention of filter fires.
Waste material hopper capacity 6 cu/mt.
Waste hopper high and low-level fill sensors.
Waste exits the silo via a rotary valve and can be dropped into a waste bag, bin, or skip.

Main Fan Motor: 45Kw
Main Fan Motor Amps: 79.28
Fan Drive Type: Direct
Fan Inlet Diameter: 750mm
Fan Volume: 15,000 Cu/Mt/Hr

Filter Surface Area: 231 Cu/Mt

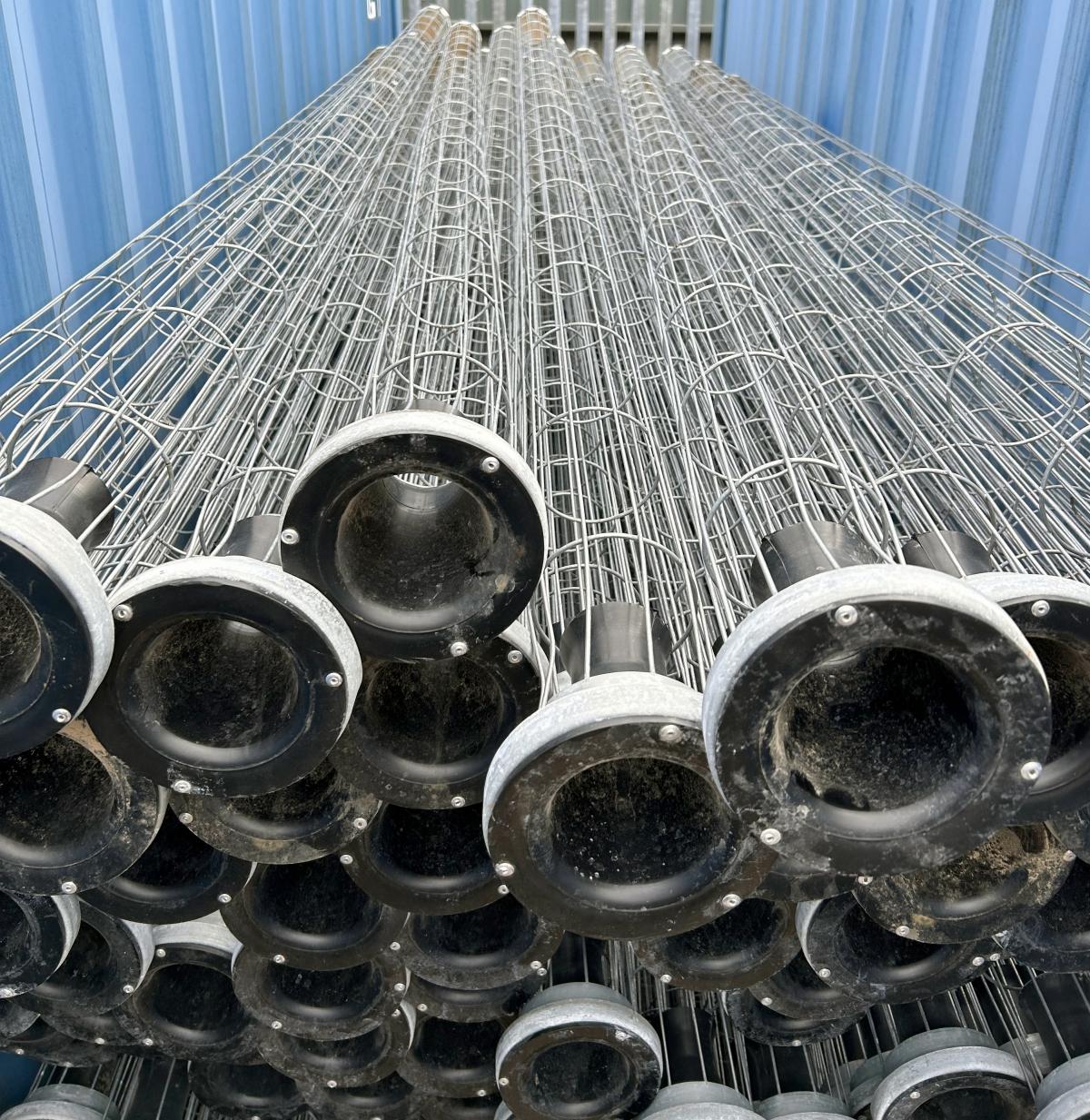

Filter Quantity: 168
Filter Type: Tubular
Filter Length: 3500mm
Filter Cleaning: Compressed Air
Compressed Air Filter Cleaning Lines: 12

Atex Explosion Panels: Yes
Atex Explosion Panel Quantity: 10

Waste Material Hopper Capacity: 6 Cu/Mt
Waste Collection: External Bin / Skip
Rotary Valve Length: 350mm

Water Dousing System For Extinguishing Filters: Manual
Sprinkler Head Quantity: 2
Water Supply Pipe Diameter: 2"

NEW 168 FILTERS



For any further information or a price approximation feel free to contact me using reference code 760:
