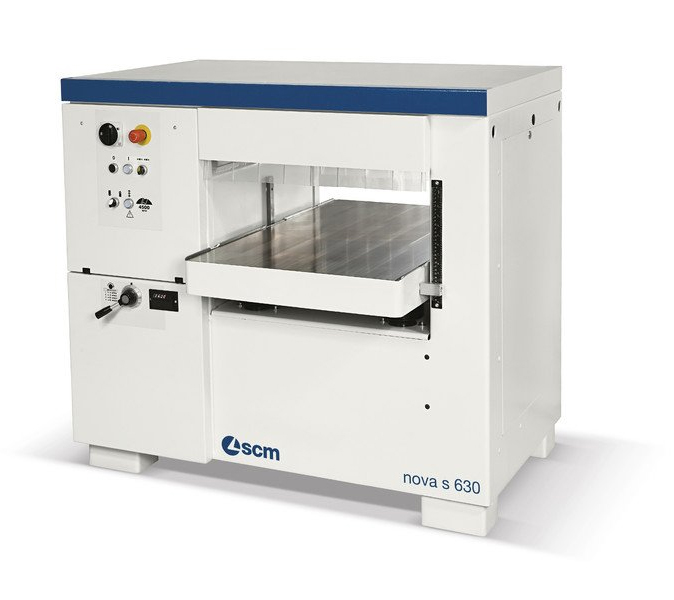

SCM S630 -S520 NOVA

Click on photograph for zoom and see all photos

Description

Guaranteed quality at your finger tips.

Easy and precise, practical design, a wider range of applications.



Call Us On 028 9081 7704

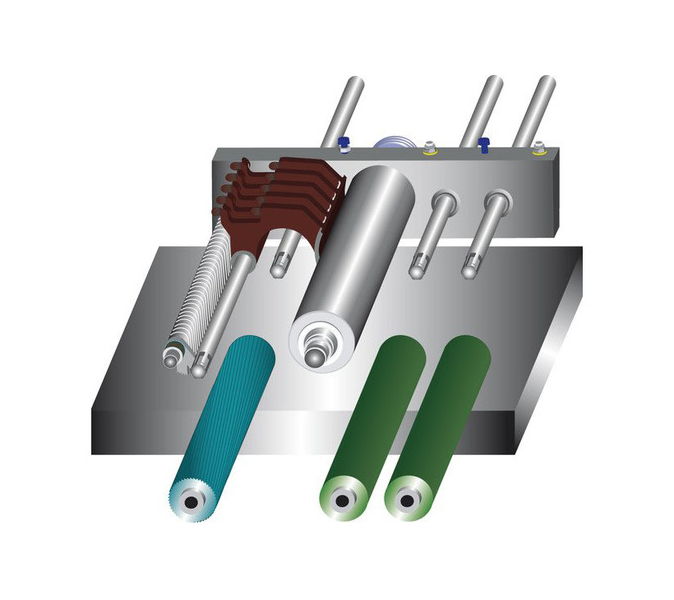

Interchangeable rollers: one machine for every requirement. Quik and easy changeover of the rollers that allows the operator to configure the machine drive function in case of special requirements such as minimum removal of fine wood and/or batches where multiple pieces of different thicknesses are processed.

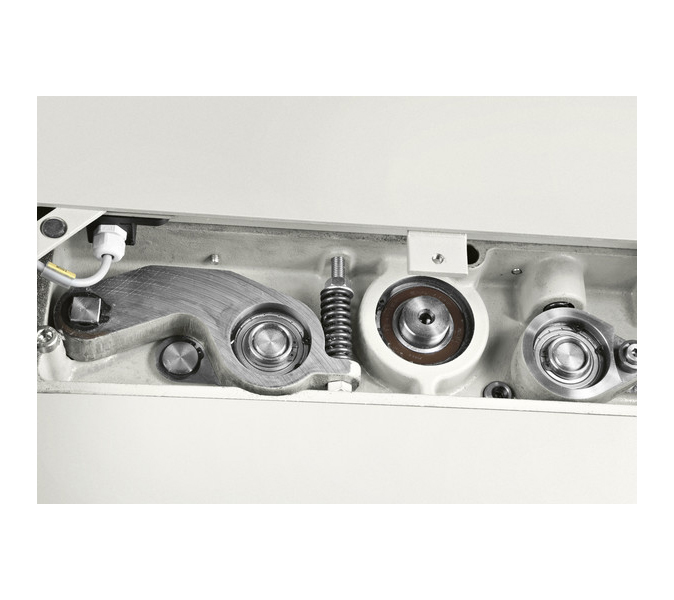

The stopping of the work piece and the presence of notches on its surface are eliminated due to the roller support system that allows their vertical displacement by rotation.

Technical Data

nova   s 630 s 520
Worktable dimensions mm 640x1000 530x900
Working width mm 630 520
Maximum working height (minimum) mm 300 (3,5) 300 (3,5)
Maximum stock removal mm 8 8
Feed speed m/min 5 - 8 - 12 - 18 5 - 8 - 12 - 18
Main motor power kW (HP) 7 (9,5) 7 (9,5)
