SCM Minimax S400 – S900P

Click on photograph for zoom and see all photos

Description

Massive, high-precision, professional band saws for the D.I.Y. woodworkers and the carpentries.

WANT MORE INFORMATION

Call Us On 028 9081 7704

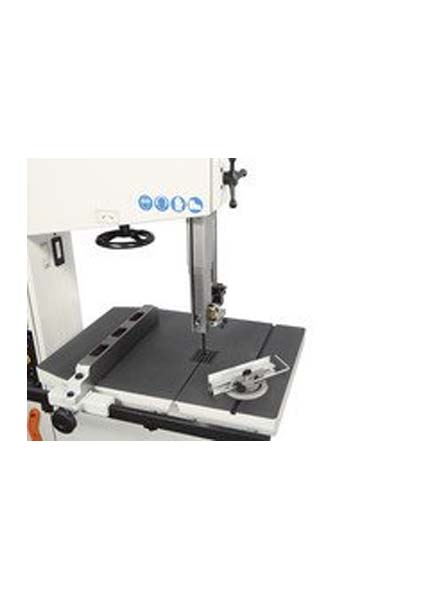

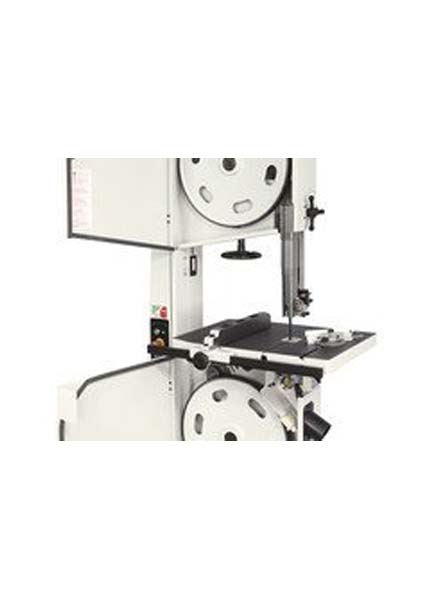

Great sturdiness: very thick, disc-type, cast iron wheels running on sealed for life ball bearings. A perfect cut result is assured by the top and bottom high-precision blade guides. Machining in total safety with the telescopic blade guard with rack.

Technical Data

band saws  s 400 p s 500 p s 600 p s 700 p s 800 p s 900 p
Worktable dimensions 450 x 600 500 x 700 580 x 810 710 x 1030 800 x 1170 800 x 1170 mm
Cast iron saw wheels diameter 400 500 600 700 800 900 mm
Max. cutting height 400 500 360 435 500 550 mm
Max. cutting width 380 500 580 680 780 880 mm
Worktable tilting (no CE) 0° ÷ 20° (45°) 0° ÷ 20° (45°) 0° ÷ 20° (45°)  0° ÷ 20° (45°) 0° ÷ 20° (45°) 0° ÷ 20° (45°)
Three-phase motor power (S1) starting from 1,5 kW (2 HP) 50 Hz  2,2 kW (3 HP) 50 Hz 2,2 kW (3 HP) 50 Hz 3 kW (4 HP) 50 Hz 4 kW (5,5 HP) 50 Hz 5,5 kW (7,5 HP) 50 Hz
