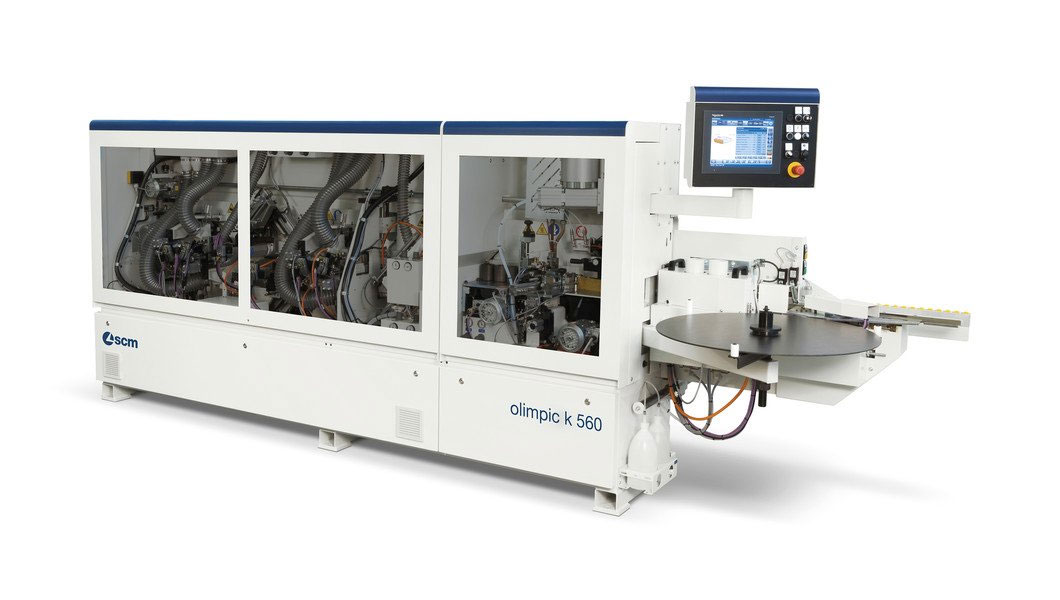

SCM Olimpic K560

Click on photograph for zoom and see all photos


Productive and compact edge bander, designed to operate for many hours per day with a 18 m/min feed speed. It is the ideal solution for all companies that require high productivity when machining a large number of panels at the same time.


Call Us On 028 9081 7704

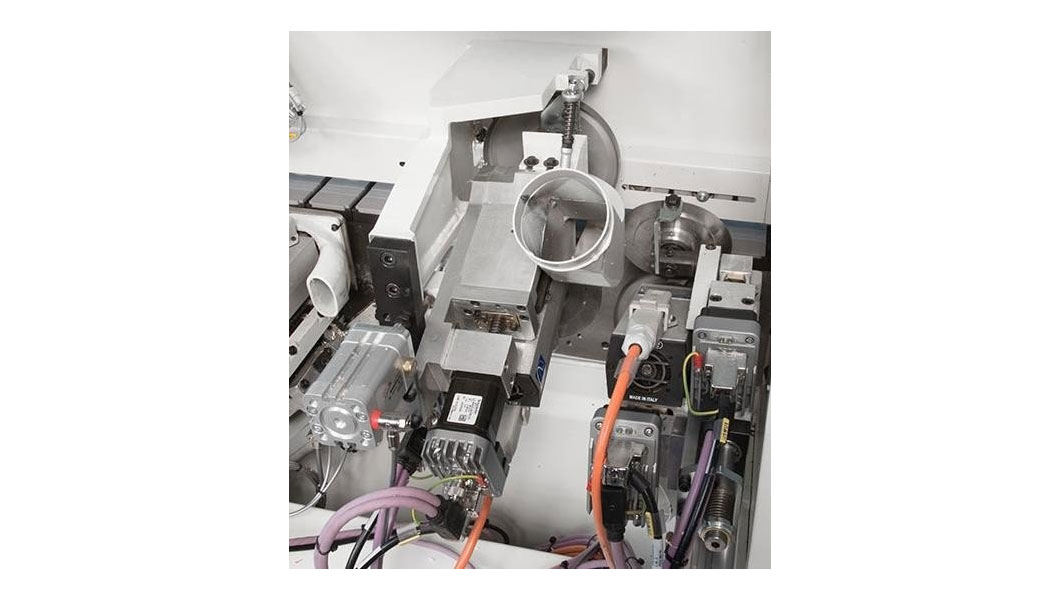

"Round X" rounding unit: productivity and quality with 2 motors technology. The features of the unit allow for the double function of both the simultaneous trimming and rounding operations. The two joint operations, in a single group, require less space and, together with the working distance between panes of only 600 mm, give a reduction in time for the edge banding.

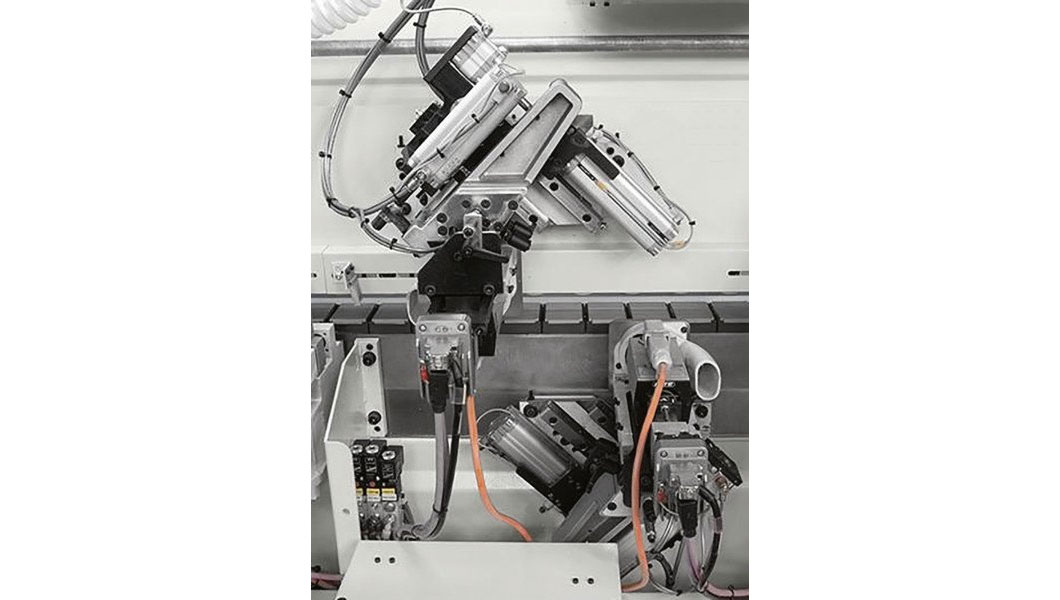

"R-K" trimming unit: 3 different machining. Rapid machining changeover between thin, thick and solid wood edges due to the 3 working positions and the "Combi" tool supplied as a standard feature.

"Touch 7" control: just a "touch" to use the machineError free machining with the touch-screen display with its customised graphics that allows an intuitive and easy selection of the main machine functions.

Technical Data

olimpic   k 560
Edge thickness mm 0,4 - 3 (6 opt.)
Panel thickness mm 8 - 60
Feed speed m/min 12 - 18
Compressed air bar 6
