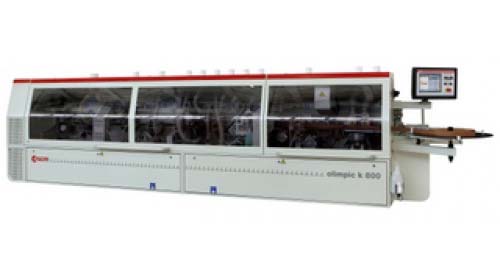

SCM Olimpic K800

Click on photograph for zoom and see all photos

Description

Flexible and electronic edge bander.



Call Us On 028 9081 7704


High customisation with many available solutions for different productive requirements. Productive thanks to the 12 or 18 m/min feed speed also when rounding. Ample controlled groups management for a very quick change among the various edge types, solid wood up to 12 mm.

round 2M”: incomparable productivity and quality with 2 motor technology. The features of the group (Scm patent) allows an 18 m/min rounding speed as well as the possibility of the simultaneous edge trimming operation. Two operations, in a single group, occupying less space, allows for a reduction in time for edge banding of panels.

RT-E panel edge trimming group: a perfect joint line of the edge. An optimum panel edge trimming group before the edge gluing, thanks to the use of the front copying devices (optional feature), that allow a constant removal over the entire panel length, maintaining the same work piece geometry.

Startouch" control: just a “touch” for using the machineError-free programming with the large dimensioned touch- screen display and its customised graphics that allows an intuitive and easy selection of the main machine functions.

Netline”: programming machines automatically. The automatic programming of beam saws, edge banders and machining centres, interconnected via a PC, with advanced software, allows the creation of complete projects without any operator intervention and no risk of errors.

Technical Data

olimpic   k 800
Edge thickness mm 0,4 - 8 (12 opt.)
Panel thickness mm 8 - 60
Feed speed m/min 12-18
Compressed air bar 6
