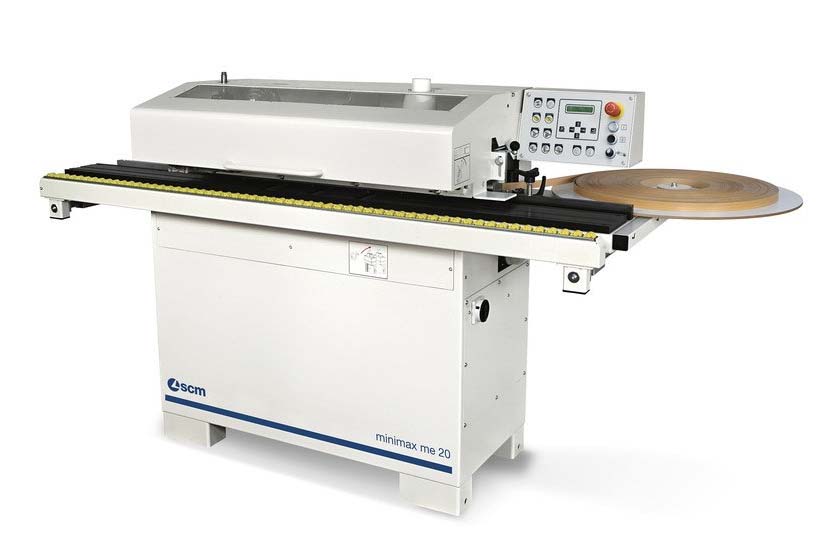

SCM Minimax ME20

Click on photograph for zoom and see all photos


Technological solution, for professional craftsmen and joineries, to edge band with an amazing easiness.


Call Us On 028 9081 7704

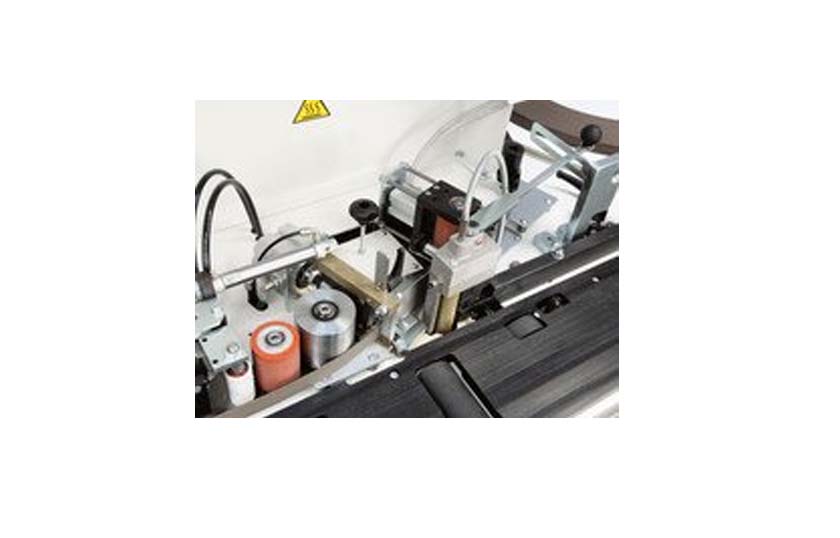

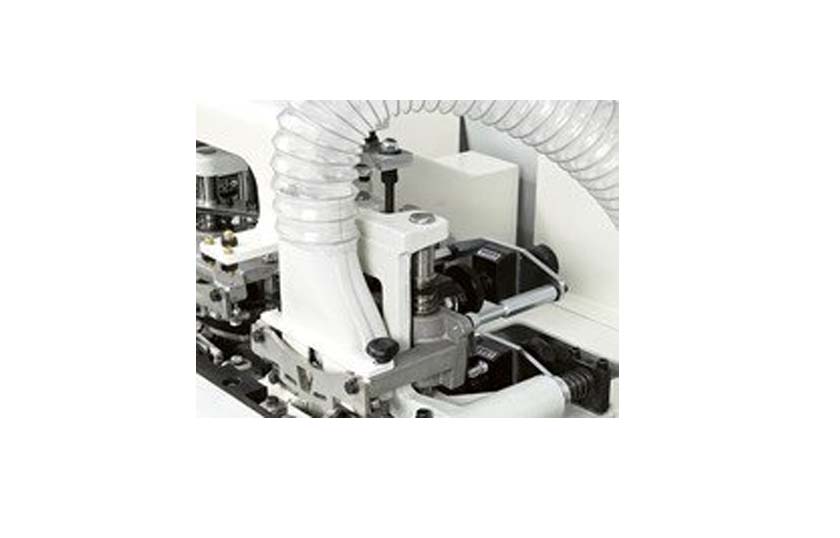

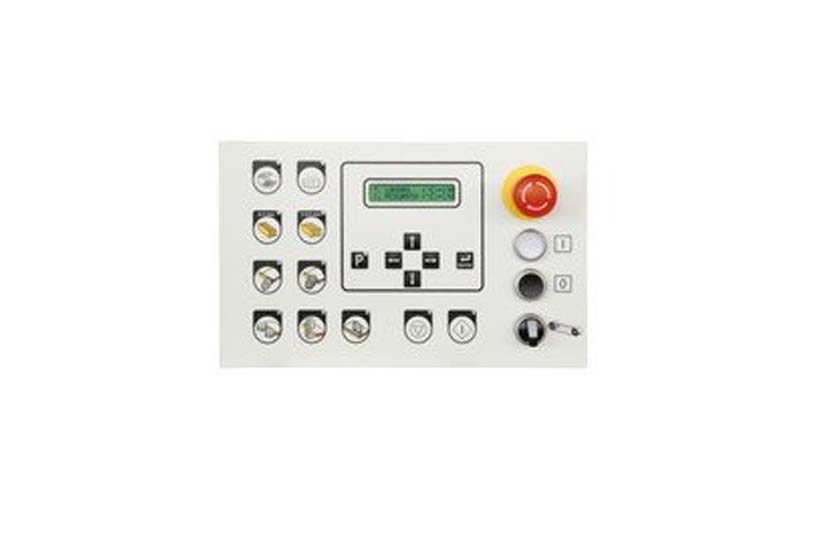

Fast set-up: glue is heated rapidly and evenly by the resistances located in both the glue pot and inside the glue spreader roller. Practical gluing unit. Two rollers press the edge evenly and efficiently onto the panel. The pressing unit position is comfortably adjustable from the machine front side. Always clean, precise cut on the leading and trailing edges of the panel assured by the pneumatic end cutting unit. Edge trimming top finishing with the trimming unit operating at a cutting speed of 12.000 rpm. Total control of all the machine’s functions, quickly and intuitively. With the PLC it is possible to easily and comfortably exclude the shear and the end cutting unit to allow also edge banding with wooden strips of the maximum thickness of 5 mm.

Technical Data

me 20
Thickness of rolled edges 0,4 ÷ 2 mm
Max. thickness of edges in strips 5 mm
Min. ÷ max. panel height 12 ÷ 50 mm
Min. panel length/width 180/65 mm
Panel feed speed 6 m/min
