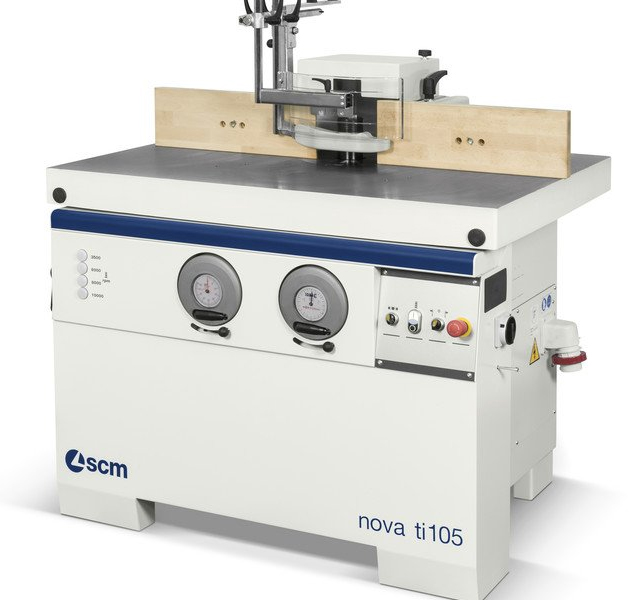

SCM TI 105 Nova

Click on photograph for zoom and see all photos

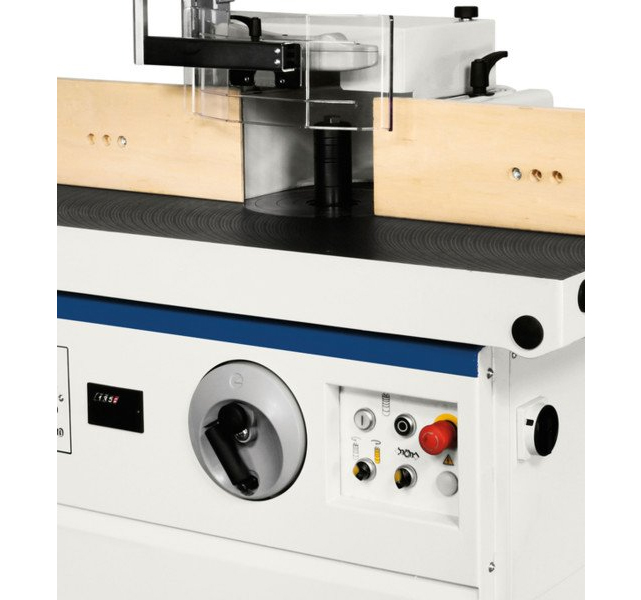

Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.


Call Us On 028 9081 7704

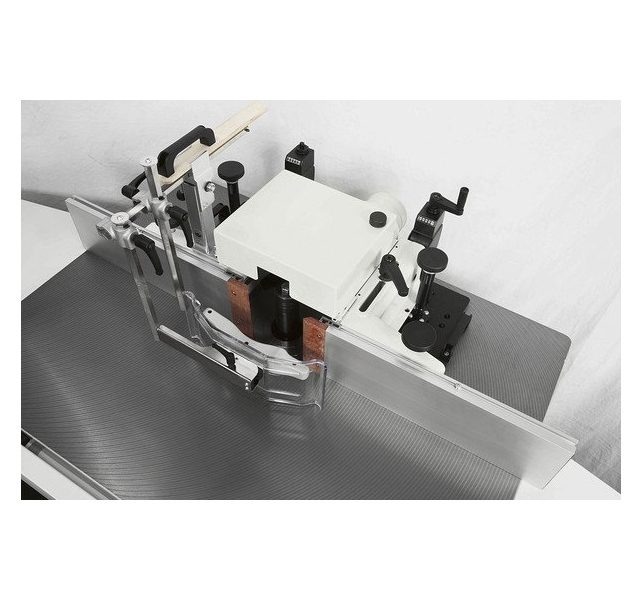

Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

Technical Data

nova   ti 105
Worktable dimensions mm 1200 x 855

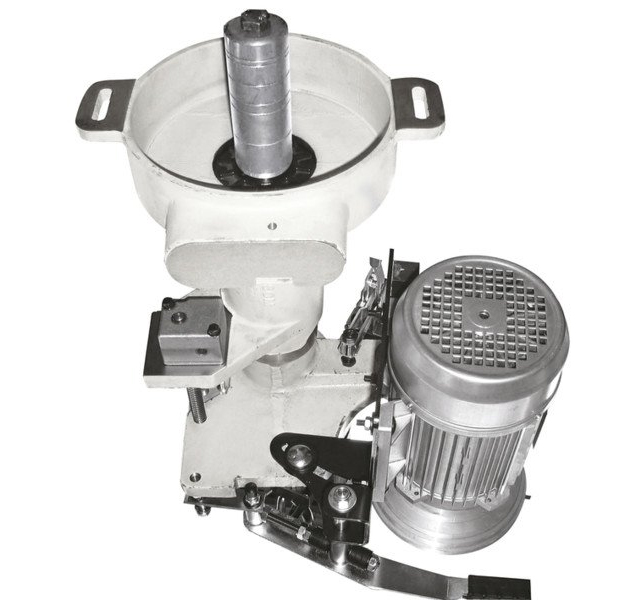

Spindle tilting   0° / +45°
Working length of CE spindle 30-35 (40-50) diameter mm 125 (125)
Max. tool diameter retractable under table mm 240 x 80
