SCM Minimax T45 W

Click on photograph for zoom and see all photos

Description

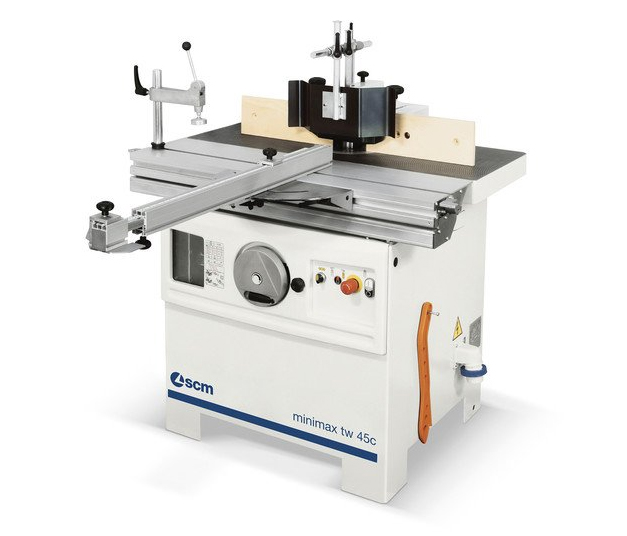

The spindle moulder, with sliding table and fixed or tilting spindle, versatile and easy to use, ideal for D.I.Y. woodworkers and craftsmen.

WANT MORE INFORMATION

Call Us On 028 9081 7704


Maximum stability during machining, with the steel and cast iron structure.

Great versatility with the spindle moulder speeds up to 10.000 rpm.

Extraordinary power: the 5kW (6,6hp) 50Hz - 6kW (8hp) 60Hz three-phase motors are provided as standard.

Customization for every woodworking need thanks to the wide range of optional devices.

Technical Data

t 45 w classic
Max. useful spindle length 100 mm
Max. tool diameter when profiling 210 mm
Max. dimensions of tool lowered under table at 90° 180 mm
Max. tool diameter when tenoning 275 mm
Three-phase motor power starting from 5 (6) kW - 50 (60) Hz



t 45 w classic
Max. useful spindle length 100 mm
Max. tool diameter when profiling 210 mm
Max. dimensions of tool lowered under table at 90° 180 mm
Max. tool diameter when tenoning 275 mm
Three-phase motor power starting from 5 (6) kW - 50 (60) Hz
