SCM Profiset 60 /40

Click on photograph for zoom and see all photos

Description

SCM Profiset 60 and 40

WANT MORE INFORMATION

Call Us On 028 9081 7704

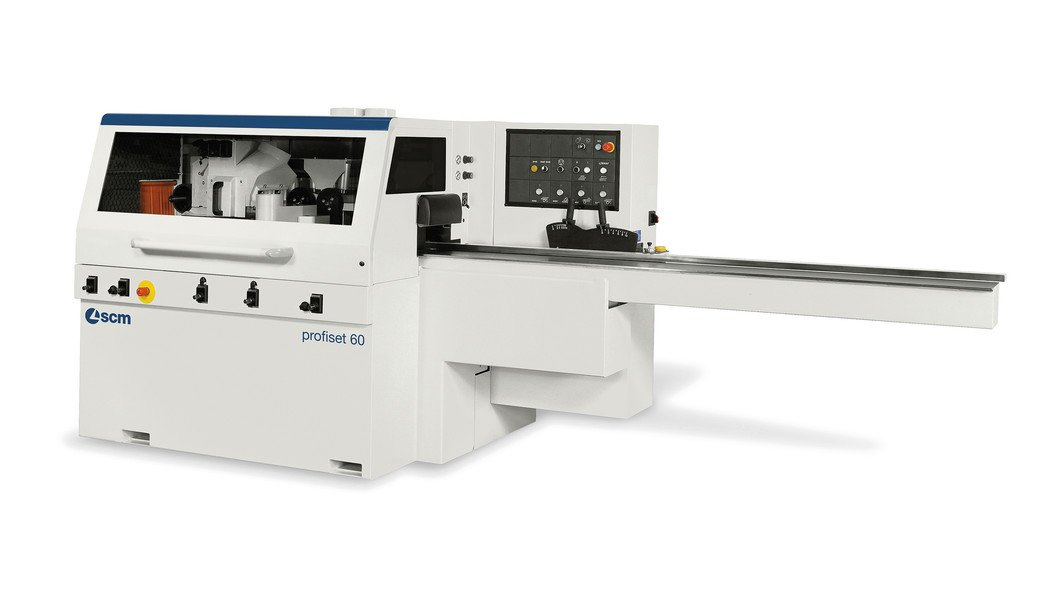

PROFISET 60

Automatic planer and throughfeed moulder up to 6 spindles, available in four compositions with possibility to preset the profiling on the top horizontal spindle (option)

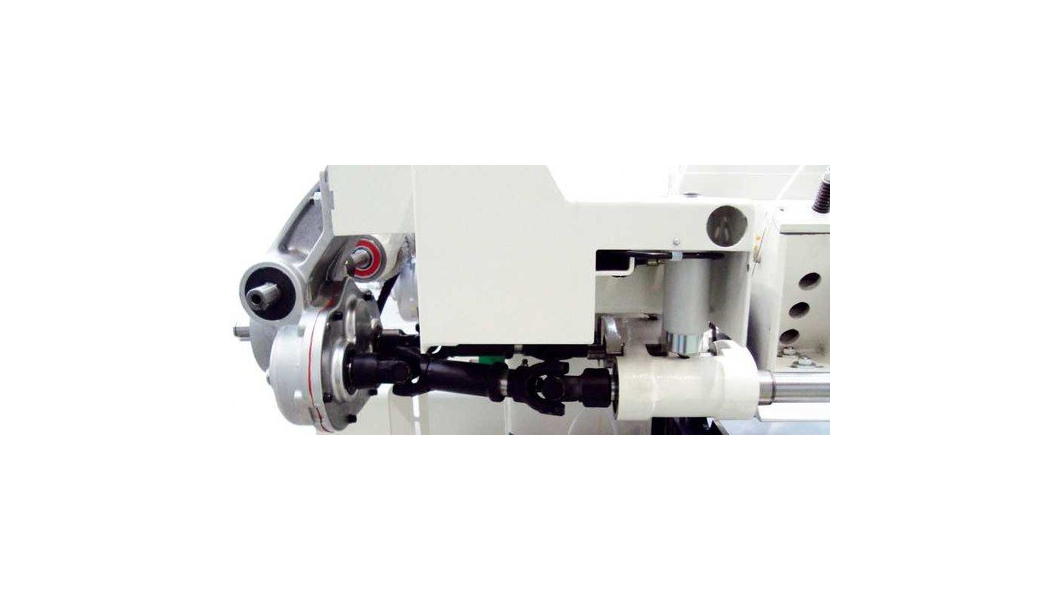

Powerful, efficient and linear feeding is ensured by the gearbox feed drive system and the cardan joints combined with the pneumatic pressure on the feed rollers.

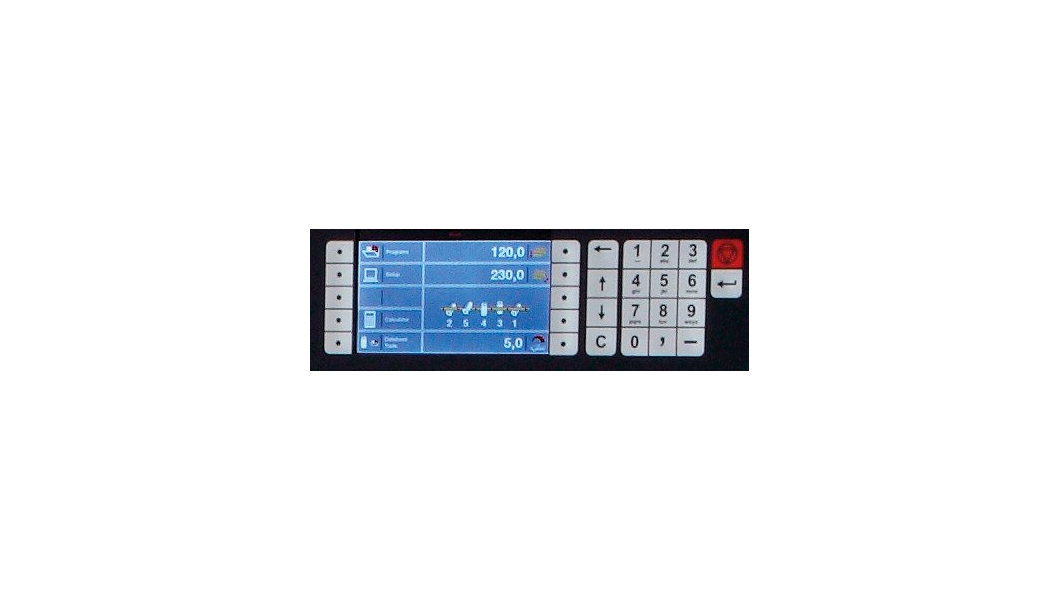

Simple and intuitive management of all machine functions by means of the "Easy Plus" electronic control with 7" colour display, 16:9.

PROFISET 40

4-spindles automatic planer and throughfeed moulder with 10 mm profiling capacity by means of vertical spindles

Technical Data

profiset   60 40
Min./max. working width (finished section) mm 25 (15 opt.)/230 23/180
Min./max. working height (finished section) mm 6/120 6/105
Feed speed m/min - 6 - 12
Feed speed (variable with inverter) m/min 5/25 -
Spindles speed rpm 6000 6000
Axial adjustment of spindles with respect to the worktable mm 40
