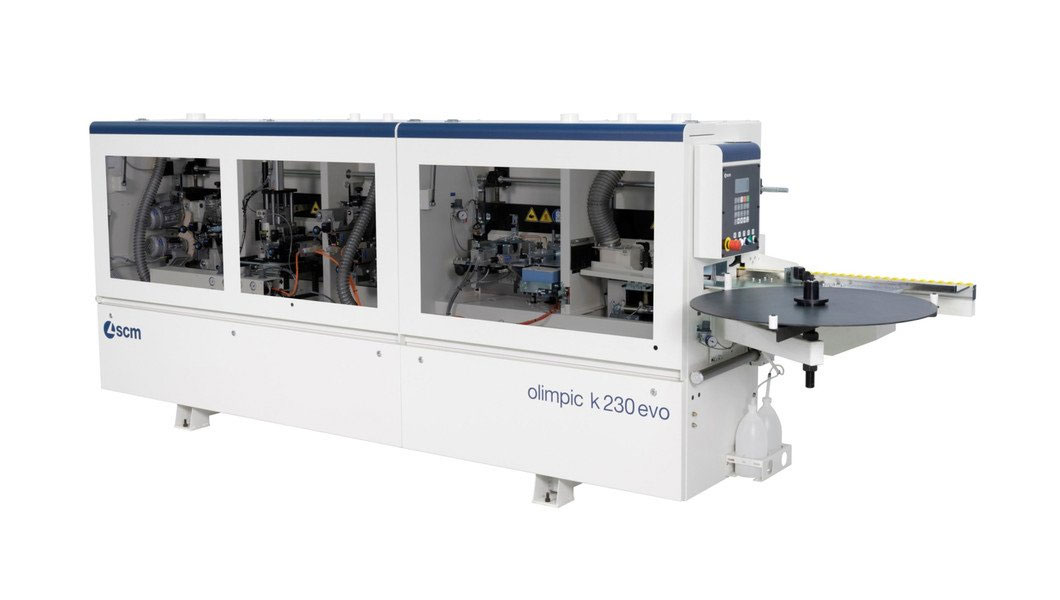

SCM Olimpic K230

Click on photograph for zoom and see all photos

Description

Easy-to-use and with all inclusive equipment: olimpic k 230, due to its advanced technological solutions designed to ensure optimal panel finishing, is the perfect edge bander  for companies beginning and requiring professional edge banding.

WANT MORE INFORMATION

Call Us On 028 9081 7704


Panel movement system: designed for a perfect finish. The very best finishing of the panel edge is also guaranteed by the panel conveying track (Scm patent), which prevents the panel having the feed affected by the the typical pulse generated by the pinion of a traditional feed track.

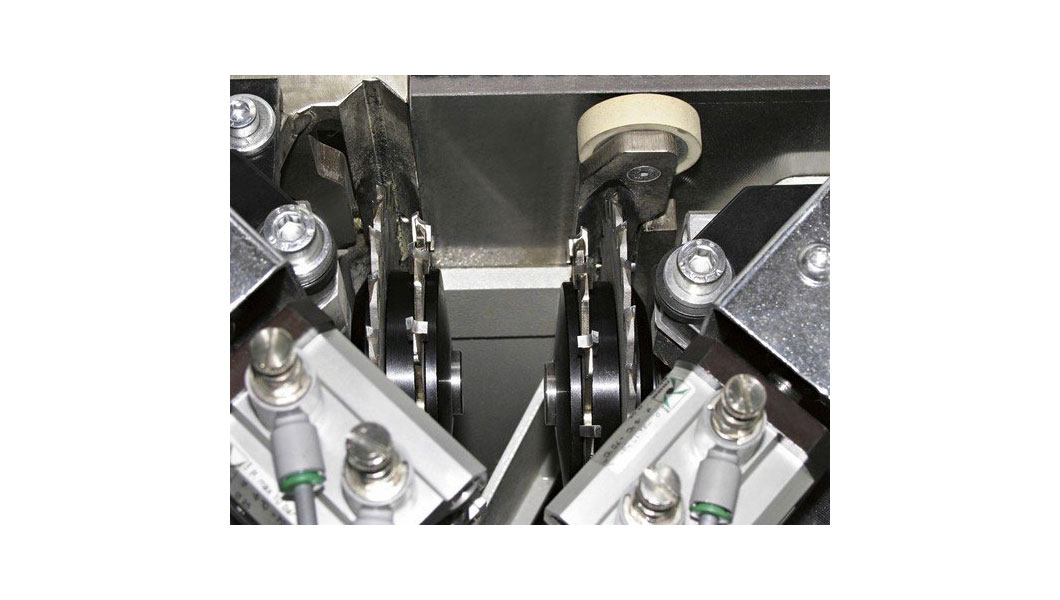

"K-2" end cutting unit: cut and “radius” in a single operationAutomatic and error free cutting of thick edges due to the particular system with two blades that allows the straight cutting of solid wood edges and the chamfering of the thin edges.

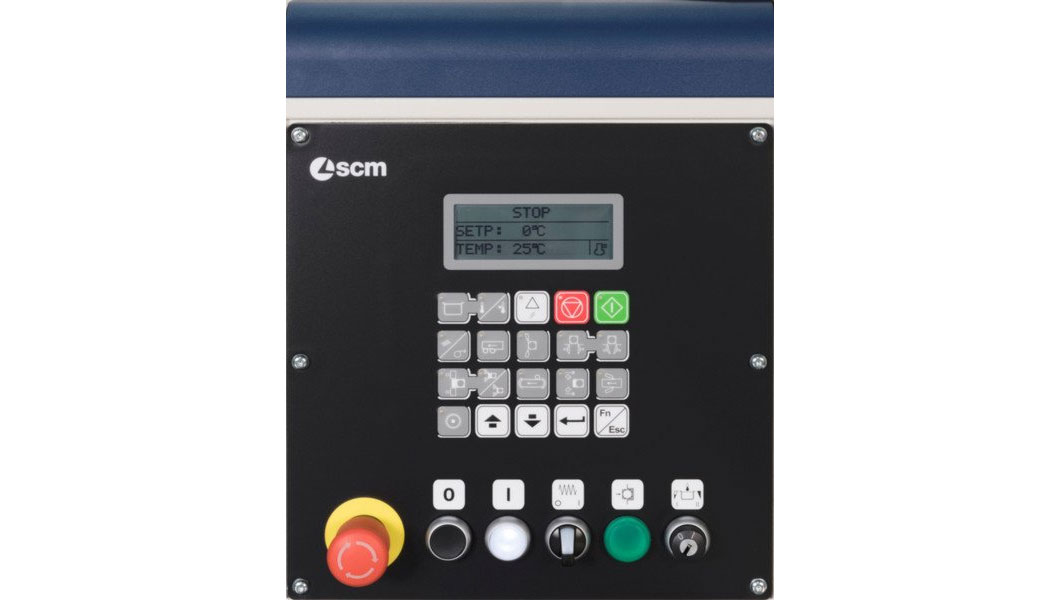

"Orion One Plus" control system: simple and intuitive machine useError- free machining is ensured by the control with its buttons and customised graphics and 4” display allows an easy selection of the main machine functions.

Technical Data

olimpic    k 230
panel thickness mm 0,4-3
edge thickness mm 8-50
feed speed m/min 9
compressed air bar 6
