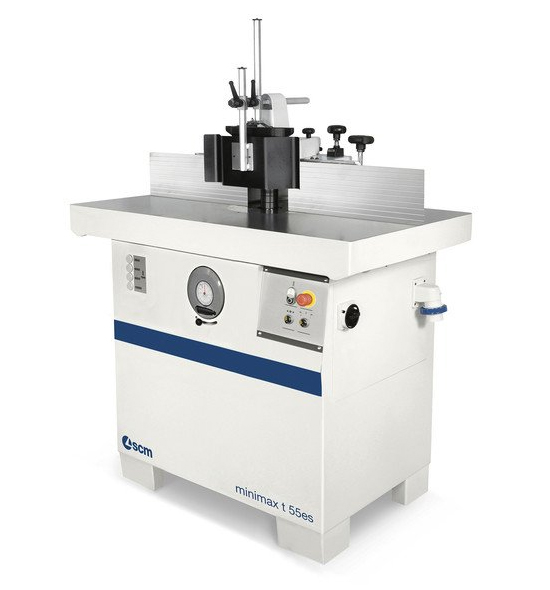

SCM Minimax T55 W Elite S

Click on photograph for zoom and see all photos

Description

The right spindle moulder for demanding craftsmen and carpentries, thanks to its customization and flexibility.



Call Us On 028 9081 7704

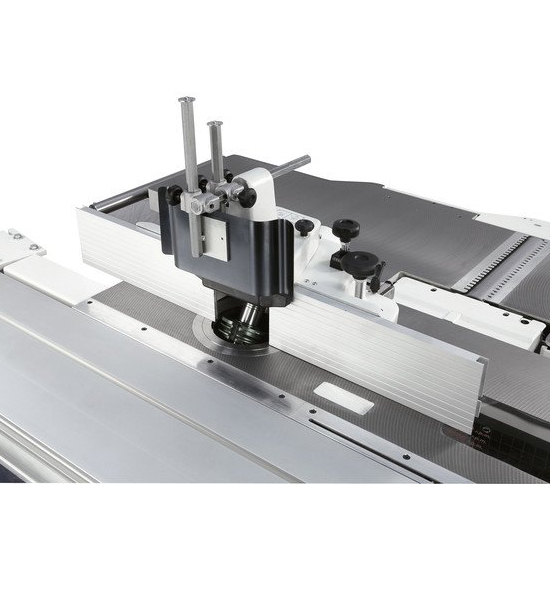

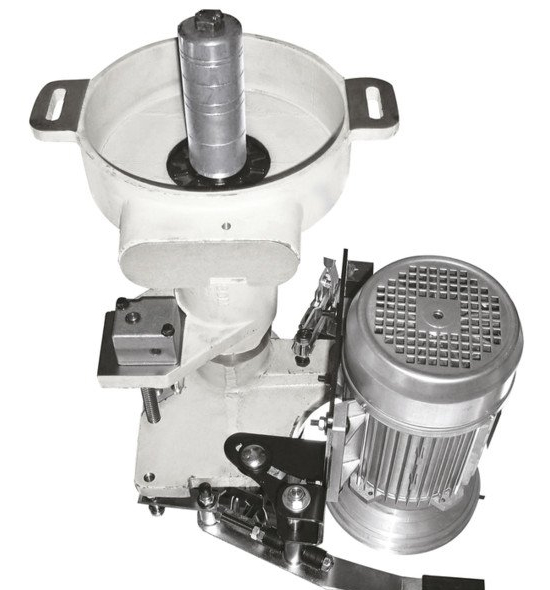

Maximum stability and rigidity in every working condition thanks to a big cast iron spindle moulder unit and a sturdy base in single-block steel. Great versatility with the spindle moulder with 4 speeds and available in fixed or tilting version. Best support in all machinings, thanks to the 330 mm width sliding table.

Technical Data



t 55 w elite s
Spindle moulder speeds 3500/6000/8000/10000 giri/min
Max. useful spindle lenght 125 mm
Max. dimensions of tool lowered under table at 90° 240 mm
Max. tool diameter when tenoning 320 (300 mm no CE) mm
Three-phase motor power starting from 5 (6) kW - 50 (60) Hz
