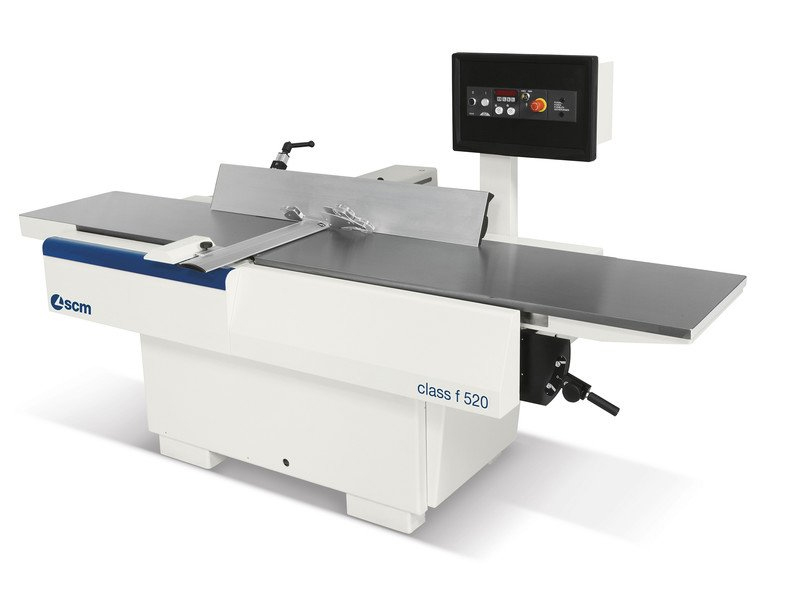

SCM F520 - F410 Class

Click on photograph for zoom and see all photos

Description

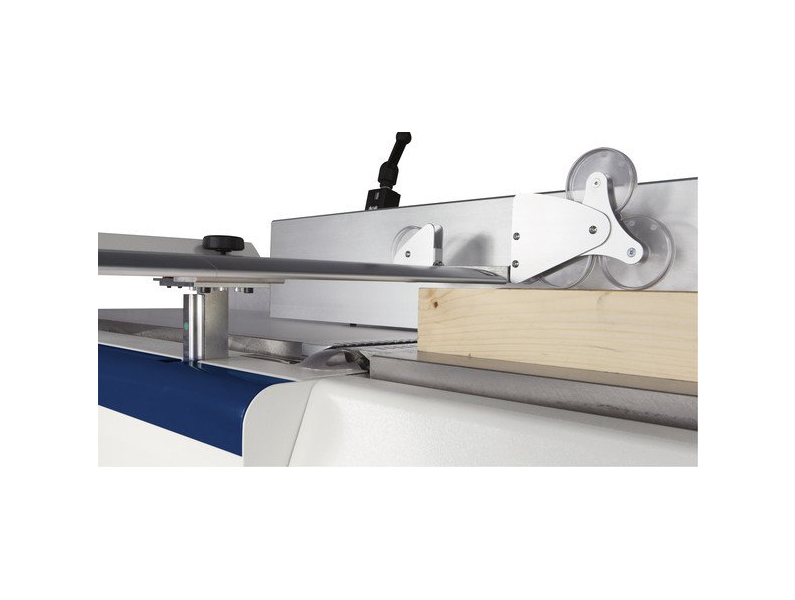

Ergonomics and safety with the "Smart Lifter" protection.



Call Us On 028 9081 7704


The protection system is perfectly integrated into the machine base excluding any hindrance or obstruction in the work, and with automatic vertical, horizontal and tilted movements it provides complete coverage of the tool before, during and after machining.

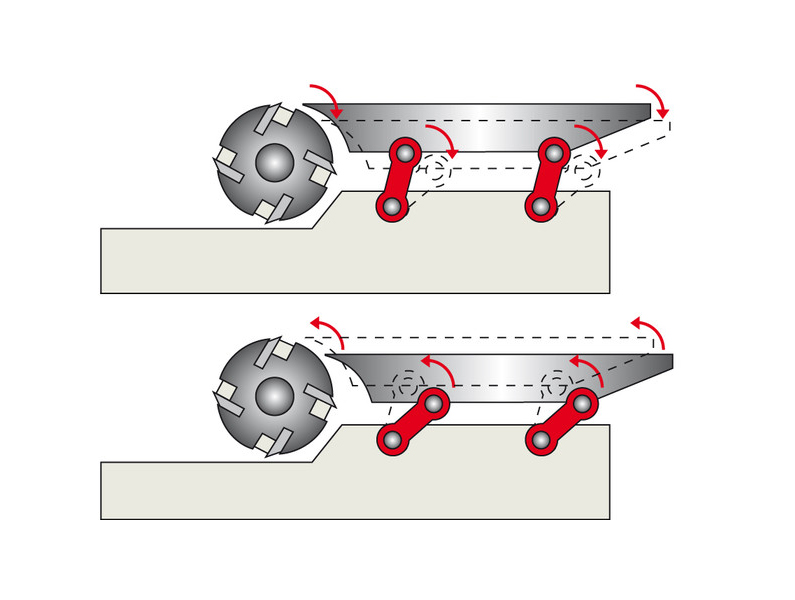

Precision that lasts a lifetime without noise with the system on connecting rods. The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.

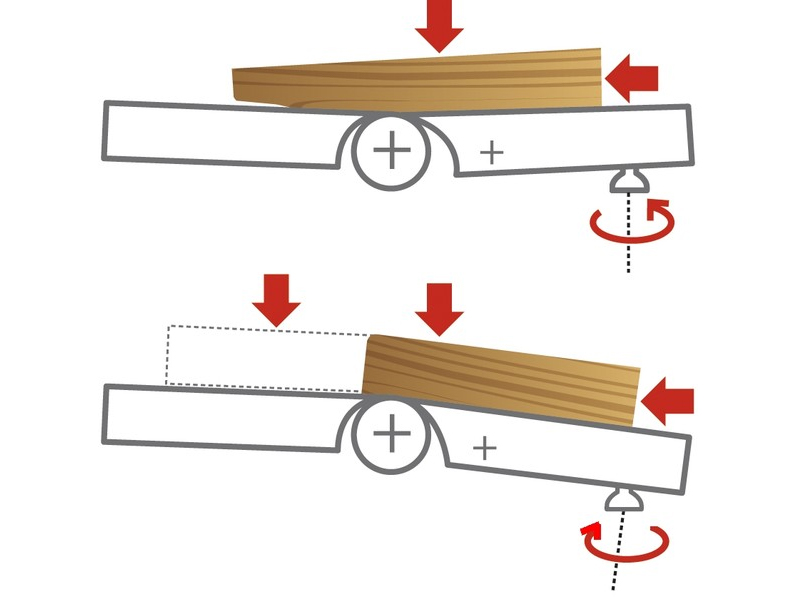

Perfect joints every time with concave/convex device. The available settings allow perfect bonding of the pieces giving excellent coupling and eliminating any joint line (F 520 Class).

Technical Data

class   f 520 f 410
Working width mm 520 410
Total worktables length mm 2750 2610
Cutterblock diameter (n. of knives) mm 120 (4) 120 (4)
Spindle speed rpm 5000 5000
Surface fence tilting   from 90° to -45° from 90° to -45°
Main motor power kW (HP) 5 (7) 5 (7)
