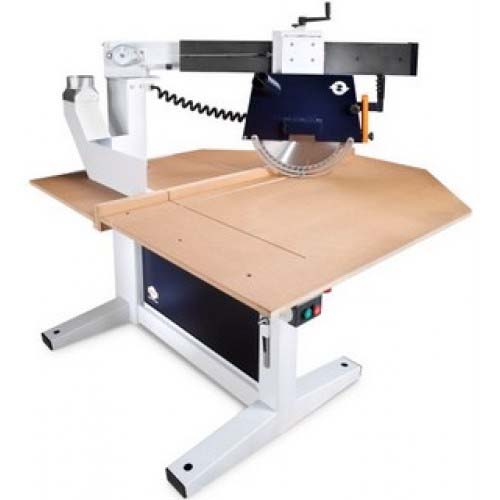

Type 625-U has a radial arm and tilting arbor and is suitable for cross-cutting materials at simple or compound angles from 0-45°. Height of cut standard 110mm optional 135mm, motor standard 3,0kW optional 5,0kW.
Technical Data
| Depth of cut (standard) | mm | | |
| Depth of cut (maximum) | mm | | 135 |
| Depth of cut motor at 45º | mm | | 70 |
| | 625 |
| Width of cut motor at 45º | mm | | 625 |
| Width of cut arm at 45º | mm | | 400 |
| | 50 |
| Saw-blade diameter (standard) | mm | | Ø 400 |
| Saw-blade diameter (maximum) | mm | | Ø 450 |
| Saw-blade bore diameter | mm | | Ø 30 |
| Adjustable arm | 0º - 45º |
| | 800x1470 |
| | 840 |
| | 3,0 |
| | 400/3~ |
| | 2800 |
| | 218
|
