Weima Briquette Press

Click on photograph for zoom and see all photos

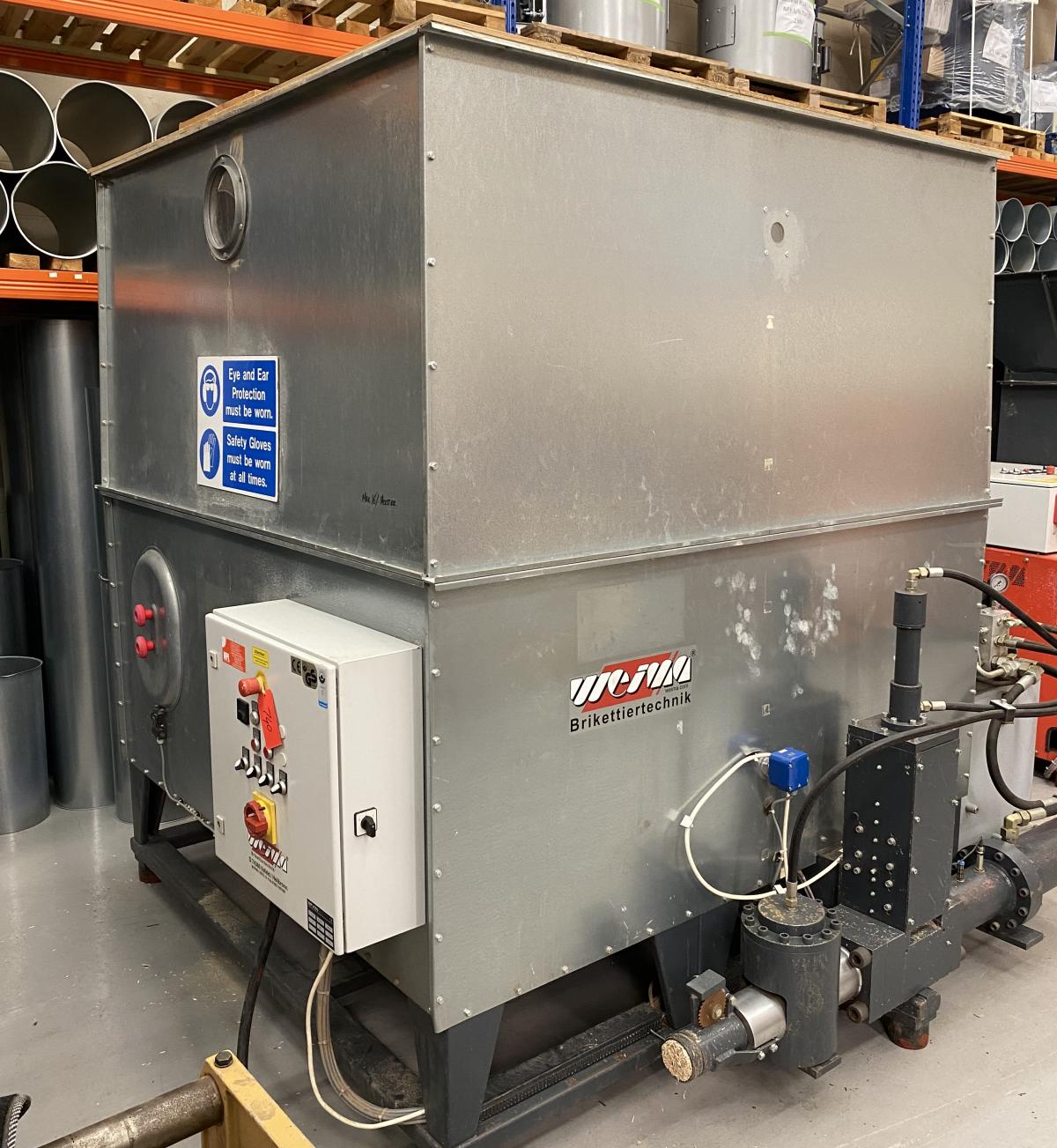

Weima Briquette Press TH 820

Call For More Information

Call Us On 028 9081 7704

MAKE : Weima
MODEL : TH 820
SERIAL NO : 980-162
YEAR MF : April 2009
VOLTAGE : 400V 3 Phase
DIMENSIONS MAX : 2900mm L x 2400mm W x 2420mm H
Briquette diameter : 80mm
Throughput per hour : 150-180Kg (dependant on material density)
Hopper dimensions (Standard) : 2000mm L x 2000mm W x 960mm H
(Optional Extra) Hopper Extension dimensions : 2000mm L x 2000mm W x 1000mm H
(Optional  Extra) Heavy duty gear box & re-enforced floor for hopper extension.
(Optional  Extra) High Level fill sensor for Hopper Extension
(Optional  Extra) Access Hatch, linked to limit switch
Hydraulic Pump Motor : 11Kw
(Optional  Extra) Hydraulic Oil Cooling System for use 7+ hours.
Automatic Start - Stop facility
Starts the briquetter when material is placed into the hopper.
Stops the briquetter when the hopper is empty.
Automatic Briquette Length Adjustment
On Board PLC automatically adjusts the machine to produce briquettes of consistant length
2787 Hours of use recorded on the Hourmeter at present.
CONDITION : Serviced
WARRANTY : 6 Months See Used Equipment Terms Of sale
LIST PRICE NEW : £39,500.00 excludes Carriage , Commissioning & Vat.
USED PRICE : £28,800.00 excludes Carriage & Vat.
