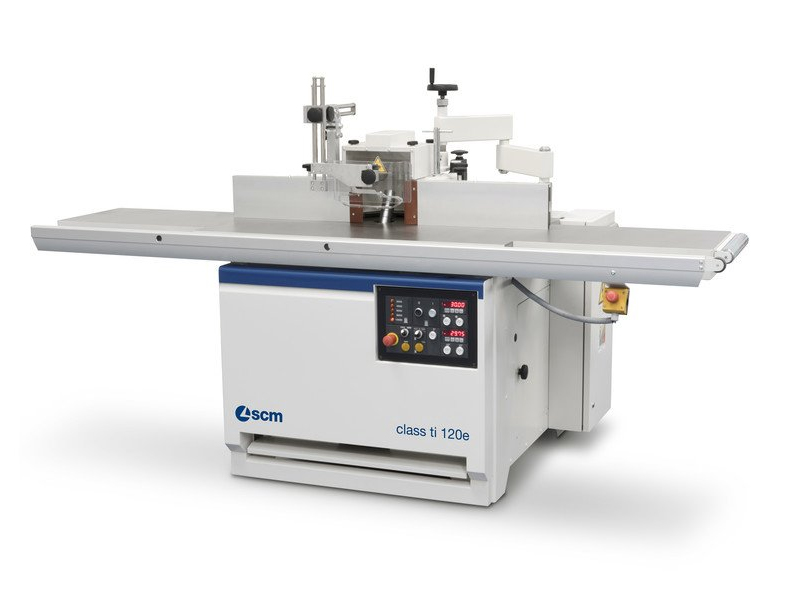

SCM Ti 120 Class

Click on photograph for zoom and see all photos

Description

Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.

WANT MORE INFORMATION

Call Us On 028 9081 7704

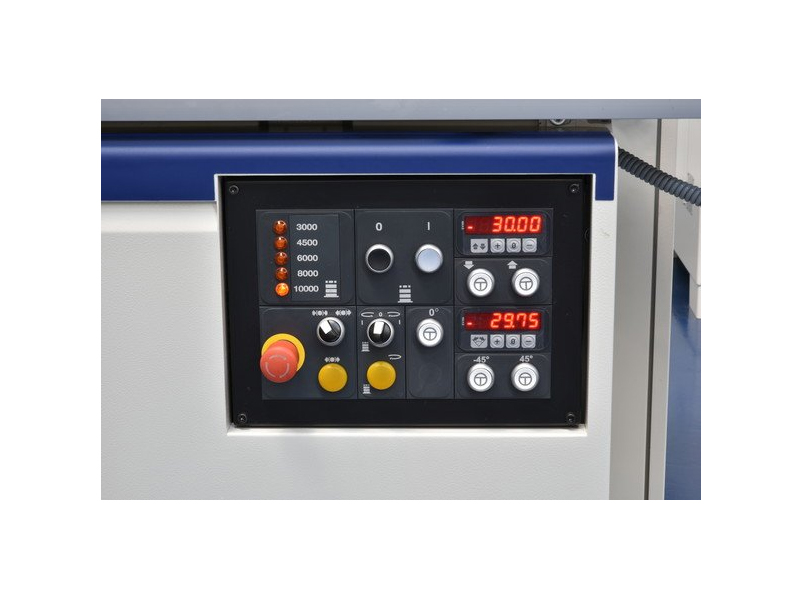

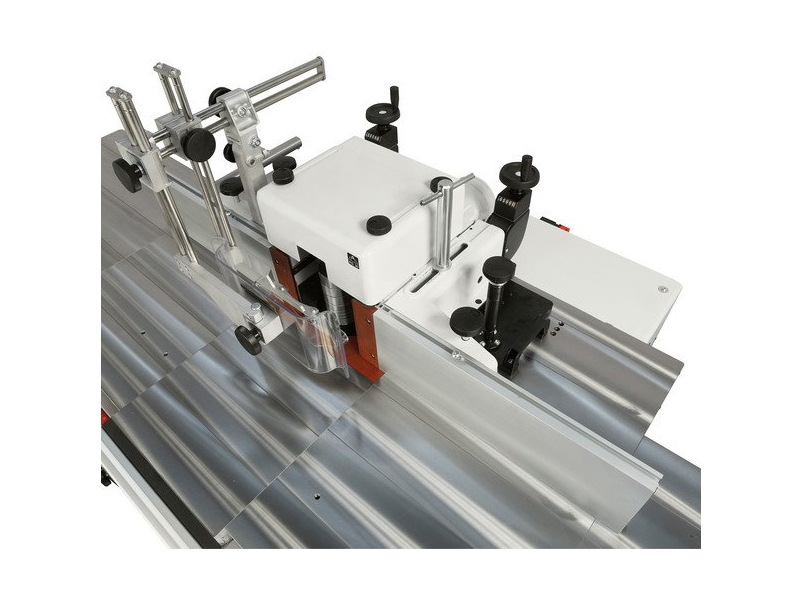

Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

Technical Data

class   ti 120
 Machine version   manual
Worktable dimension mm 1200x810
Spindle tilting                                                                     mm +/- 45°
Spindle height Ø 30-35 (Ø 40 -50)   mm 140 (180)
Spindle base projection from table mm 25
Max. tool diameter retractable under work table mm 320 x 60
